Introduction

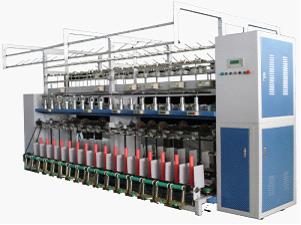

HLT64-I

One motor driving for one spindle, drum wind, output speed adjusted by inverter. The equipped power is 8.5kw. The 12 gauge united needle for both inner and outer rotating suitable for producing colors chain fancy yarn, hollow tape yarn. The special ordered cylinder can produce two colors spiral yarn and covered yarn.

(All the cylinders are run by one motor, the equipped power is 3kw)

HLT64-II

One motor driving for one spindle, drum wind, output speed adjusted by inverter. The equipped power is 8.3kw. It can produce feather yarn without twisting (5-20mm or 20-35mm must be mentioned when order). The longest length of the feather is 35mm.  (All cylinders are run by one motor, the equipped power is 3kw)

HLT64-III

One motor driving for one spindle. There are three sets of speed adjustable systems controlled by inverter and one step system.And there are two winding types of ring spindles and drum. The equipped power is 12kw. All the technological parameters can be set, amended and saved by touching screen and PLC. Besides hollow tape yarn, it can produce all kinds of one / two / three colored knot yarn, two / sectional colored feather yarn, two colored covered yarn, three colored tape yarn, and circle yarn etc.

(All cylinders are run by one motor, the equipped power of is 8kw).

Specification
