Available

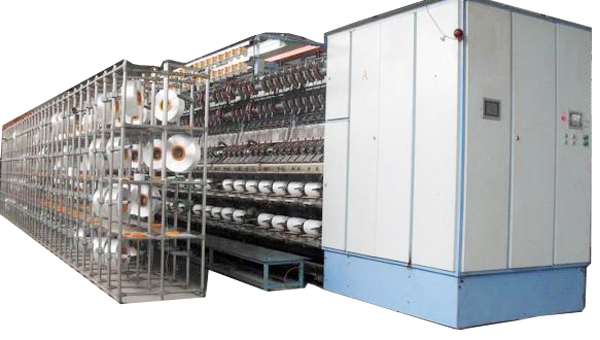

HLK-B Air Textured Machine is a new brand machine which was designed by our company. It uses pressure air jets to process the filament and made the filament fluffy and has some feature of stable fiber. Then use different deformation process to made the products feel and look like wool，cotton，linen and silk. This machine can made the(FDY) such as polyester， polypropylene ，nylon into ATY after wetting ,deformation and oiling. The ATY yarns are used for looms machine.
Specification
|
Method of the operation |
Two sides operation |
|
Section |
8 sections (16 spindles for one section) |
|
Spindle No. |
128 |
|
Fiber Density |
75-2000dtex |
|
Max. Output Speed |
600 m/min |
|
Cone Winding Size |
Φ250×250mm |
|
Cone Winding Weight |
5kg |
|
Main transmission power |
40kw |
|
Auxiliary Transmission Power(About) |
0.72kw |
|
Rated pressure of Air pressure |
0.6-0.9Mpa |
|
Machine Dimension (without the creel) |
13160*4320*2205mm (L*W*H) |
|
