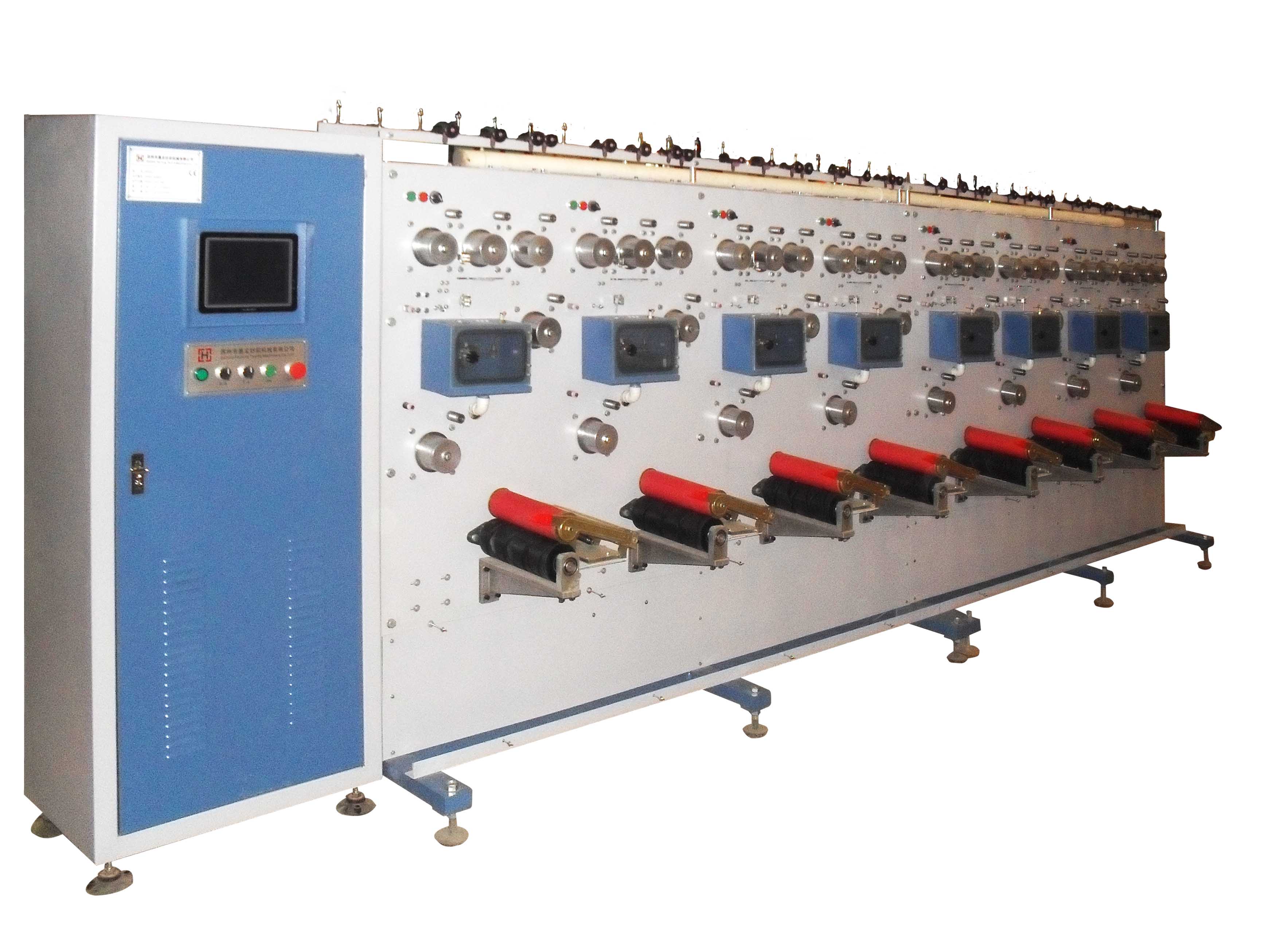

HLK-A Air textured machine


Introduction:

Using compressed air, the machine can make the polyester, acrylic, nylon, polypropylene and viscose filament into the textured yarn with the same style of the natural fiber. It was extensive used in garment, home decoration, carpet, textile wall paper etc . For the special style, low cost and high capacity, more and more manufacturers are interested in the ATY.

Specification:

Method of the operation

Single-side and stand-up machine

Spindle No.

12-48

Spindle Gauge

550mm

Cone winding Size

Ф250*250mm

Air pressure

5.5kg-10kg/cm2

Water supply

2-6 drop/sec, 0.5-1.5 L/spindle/hour

Air consumption

0.12-0.3m3 /min/spindle

Creel type

separate (at one side of machine)

Machine dimension

2200*1000*1900mm

Product Description

Model

HLK-A-I

HLK-A-II

HLK-A-III

Basic equipment

One set of core filament roller

One set of core filament roller

One set of core filament roller

One set of effect filament roller

One sets of effect filament roller

three sets of effect filament roller

One set of winding roller

One set of winding roller

One set of winding roller

Electric control

One spindle driven by one motor

One spindle driven by four motors,

and controlled by PLC,touch screen and inverter adjustable speed.

One spindle driven by six motors,

and controlled by PLC, touch screen and inverter adjustable speed.

products

Air textured yarn

Fancy air textured yarn with two colors gradual changing or sudden changing.

Long or short knot fancy air textured yarn.

Fancy air textured yarn with three colors gradual or sudden changing.

Long or short knot fancy air textured yarn.
